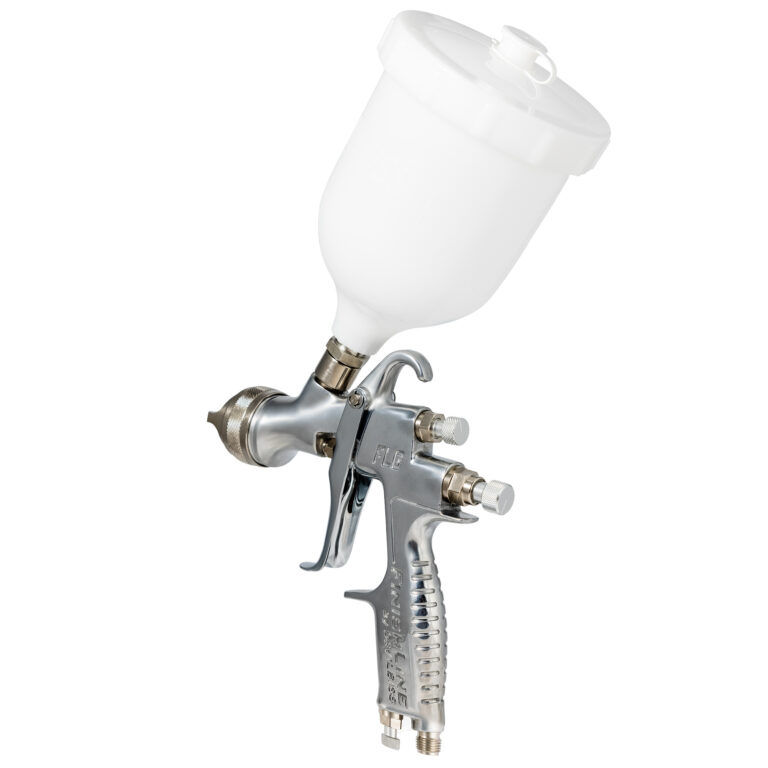

DeVilbiss FLG5 (FLG-G5) Compliant Spray Gun

905166 - 1.3mm
905167 - 1.4mm
905168 - 1.8mm
905169 - 2.0mm

The FLG5 is a fantastic value spray gun with the assurance of the DeVilbiss brand. As popular as a gun can be – never a dissatisfied customer.

DeVilbiss FLG5 gravity feeds a general-purpose spray gun for a wide range of automotive materials and coatings.

An all-metal construction includes a high-grade aluminium drop-forged gun body. The FLG5 employs compliant technology, ensuring low overspray and reduced consumption. Proven DeVilbiss controls and a light, smooth trigger action.

Spare Gravity Cup is available for this gun, please see GFC-501 (1PT) in parts breakdown.

Suitable for solvent and water-based materials.

This gun is made from a cast and is not milled (machined) like the DeVilbiss guns that cost hundreds of pounds. This keeps the cost down but means that there are minor imperfections where the casts are joined together. This is merely aesthetic. The functionality of the internals is top class.

Setups available:
1.3mm Nozzle & Needle – suits clearcoat / thinner basecoats
1.4mm Nozzle & Needle – suits basecoat / cellulose / synthetic / 2K and lower viscosity material; a great all-rounder.
1.8mm Nozzle & Needle – suits higher build materials such as thick topcoats application and primers.
2.0mm Nozzle & Needle – suits higher build materials such as thick topcoats application and primers.

Technical Specifications
Air Inlet Thread: 1/4″ Universal
Cup Capacity: 560ml
Weight Gun & Cup: 692g
Air Cap: Brass
Retaining Ring: Aluminium
Fluid Tip: Stainless Steel
Fluid Needle: Stainless Steel
Air Inlet Pressure: 1.6 bar (23 psi)
Air Consumption: only 9.8 cfm 277l/min

General purpose compliant spray gun for a wide range of refinish paints and coatings
Operates with unique and efficient DeVilbiss Trans-Tech® Atomisation Technology
Ergonomically shaped gun handle for positive grip and comfort
Smooth action trigger with exceptionally light pull for fatigue free operation
Ultra lightweight but strong, cast aluminium gun body
Full controls of pattern shape, fluid flow rate and air inlet pressure
Precision engineered brass air cap and stainless steel fluid tips
Gravity model with large capacity cups
